  •  GC-D638T
  • Table Thickness Gauge | Digital Display

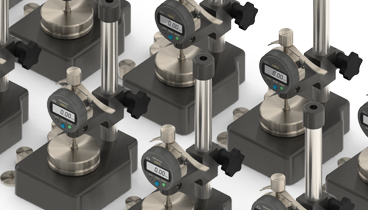

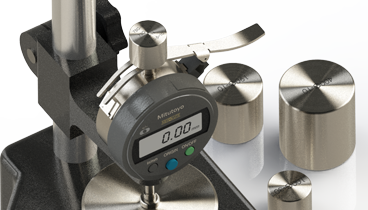

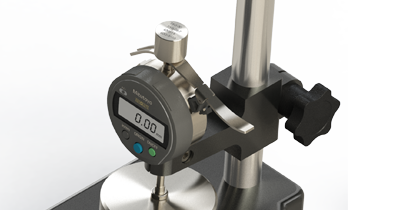

Table Thickness Gauge | Digital Display

      Table thickness gauge, table thickness gauge, table thickness gauge, table thickness gauge. This machine is suitable for measuring the thickness of paper, leather, textile, footwear and other materials. Place the test piece between the upper and lower pressure plates (and add a certain load) and indicate the thickness of the measured material through a dial indicator.

      Warm tips: different standards have different pressure plate and pressure requirements. Please refer to the standard for detailed description when purchasing.

  • Table Thickness Gauge | Digital Display
  • Table Thickness Gauge | Digital Display
  • Table Thickness Gauge | Digital Display
  •
  •  According to standard:
  • ASTM D1813,SATRA TM1、TM27,JIS 6505,Adidas GE-05,Nike,PSA D45 1195...
ballast diameter:10mm or customer specified
load specification:500g / cm2 or customer specified
range:0-12mm
accuracy:0.01mm (digital display percentage) / 0.001mm (digital display micrometer)
volume (L × W × H):16.5 × 7.5 × 18.5cm
weight:6.5kg
