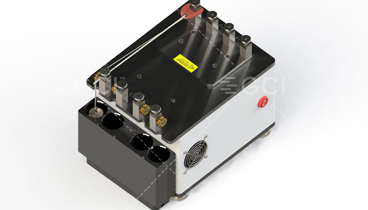

Shoelace Wear Tester

      This machine can test the wear resistance of shoelaces. Take the middle sections of multiple shoelaces and hook them to form one on the left and one on the right, and clamp them with this machine's fixture, which is different from the traditional shoelace wear resistance test machine. It adopts the lightweight silent test. During the test, the moving clip moves back and forth at a constant speed in a straight line, so that the middle sections of multiple shoelaces rub against each other. Record the friction times when the test reaches the specified friction times or the shoelaces are broken.

  • Shoelace Wear Tester
  • Shoelace Wear Tester
  • Shoelace Wear Tester
  •
  •  According to standard:
  • SATRA TM 154、 BS 5131、 DIN 4843
number of fixture groups:4 groups
speed:60 RPM
Load:2.45N
stroke:35mm
controller:PLC + touch screen
power supply:1 ∮ ,AC220v/50hz, 3A
volume (L × W × H):64 × 51 × 24.5cm
weight:25kg

* product specifications and contents. In case of any change, please refer to the actual quotation data of our company
