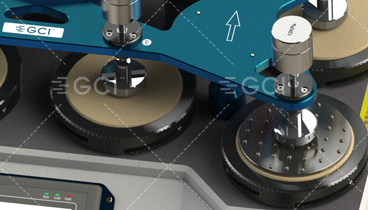

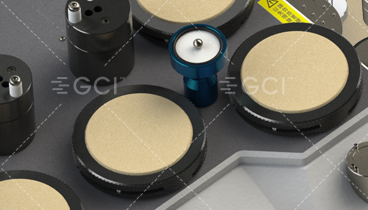

Martindale Friction Tester

      This machine tests the friction resistance, fuzzing and pilling performance of the outer layer, lining, substrate and similar fabrics of textiles and shoes. Six test pieces can be tested at the same time. During the test, the friction hammer rubs the test piece repeatedly in a variable direction. Under the specified friction times, its wear characteristics can be measured, and there are two different weights for testing.

       This machine is ideal for determining the abrasion resistance of upper, lining, socking, and similar types of shoe materials, particularly those made of fabric.

  • Martindale Friction Tester
  • Martindale Friction Tester
  • Martindale Friction Tester
  •
  •  According to standard:
  • VDA230-211标准引用ISO12947-1、BS3424, 5690;EN344, 530;SATRA PM31
control and counter:hmi+plc
number of groups:8 groups
speed:48 RPM (16 revolutions to complete a Lissajous graphic)
Load:795g (12kpa), 595g (9kpa)
sample disk:diameter Ф120mm
power supply:1∮,AC220V/50Hz,1A
volume (L × W × H):76  ×  66.5 ×  38 cm
weight:150 kg

* product specifications and contents. In case of any change, please refer to the actual quotation data of our company
