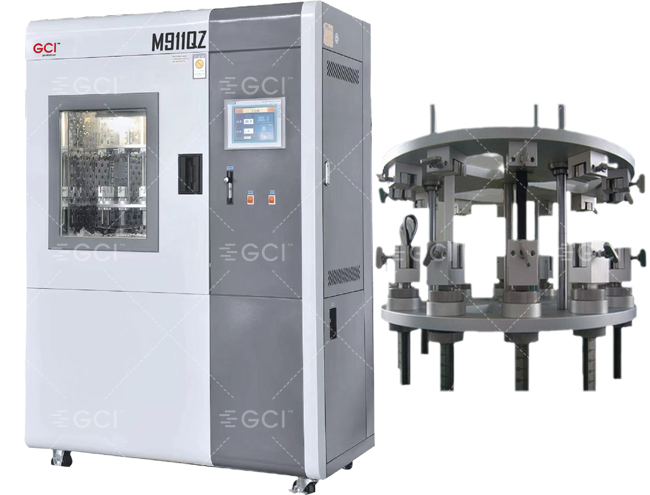

Ozone Resistance Tester

      This machine provides a controllable and adjustable ozone concentration and temperature environment, which is mainly applicable to measuring the anti ozone performance of rubber in this environment. It can distinguish the product performance in a short time, and provide a reliable basis for improving the formula and improving the quality.

  •
  •  According to standard:
  • GB/T 7762-2014、GB/T13642-2015、ASTM D1149-18、ISO 1431-1:2012
Temperature range:Normal temperature + 10 ℃ ~ 80 ℃ or 20 ℃ ~ 80 ℃ (choose one)
Control mode:PLC + touch screen
Temperature deviation:±0.5℃
Humidity range:50% RH ~ 80% RH < br / > note 1: corresponding to the humidity range, the temperature range is 23 ℃ ~ 40 ℃ < br / > note 2: humidity is a separately purchased item
Temperature control range:20℃~90℃
Humidity deviation:±5%RH
Ozone range:20~1000pphm
Ozone deviation:≤200pphm±4pphm
≤500pphm±10pphm
≤1000pphm±20pphm
Ozone resolution:0.1pphm
Ozone fluctuation:≤±2pphm
Ozone removal and removal system:After the test, the ozone is discharged outdoors after activated carbon adsorption and filtration, which is safe and reliable
Inner box size (W × D × H):60 × 80 × 60 cm
Power Supply:1∮,AC220V/50Hz,10A
Volume (L × W × H):154 × 75 × 192cm
Weight:210Kg

* in case of any change in product specifications and contents, please refer to the actual quotation of our company.
